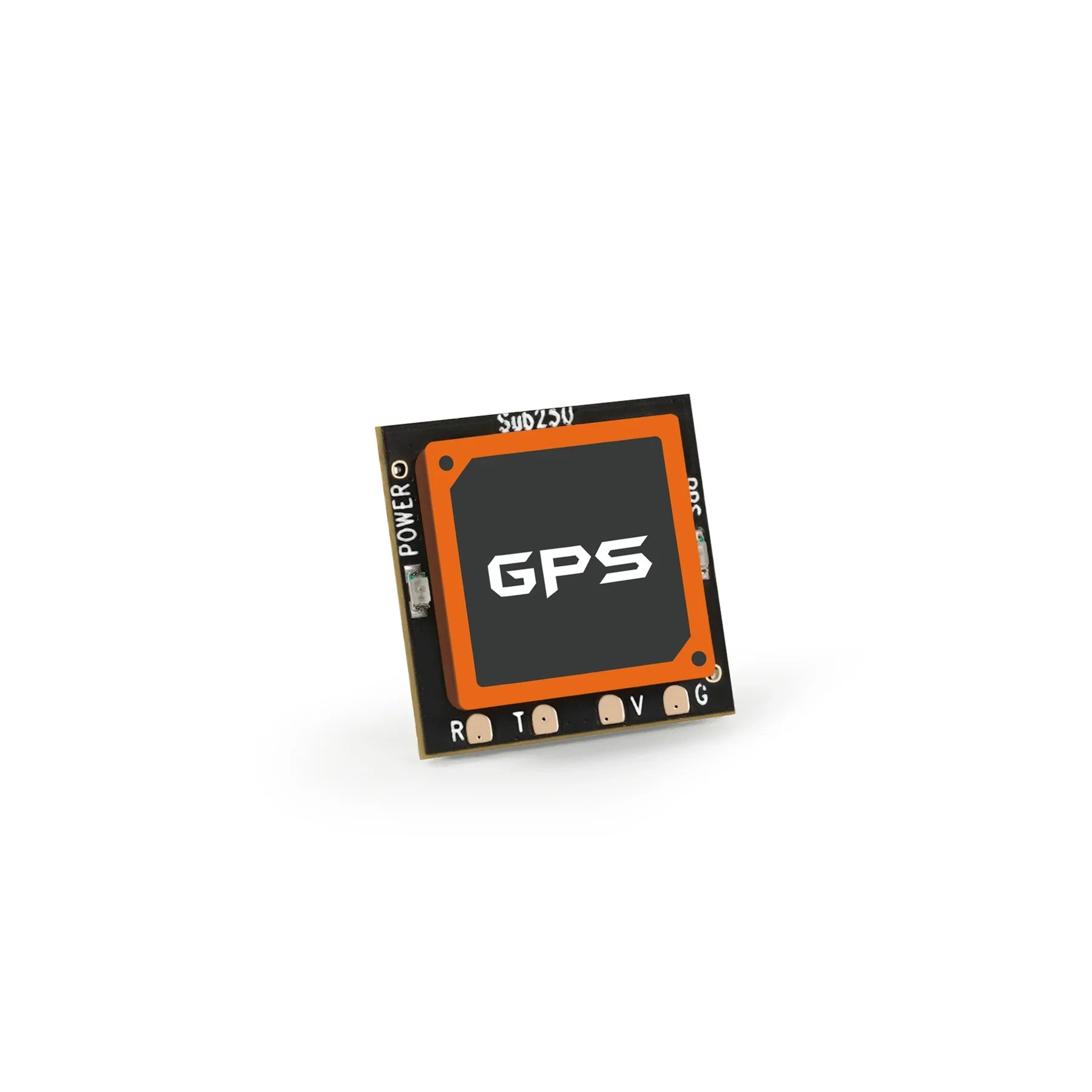

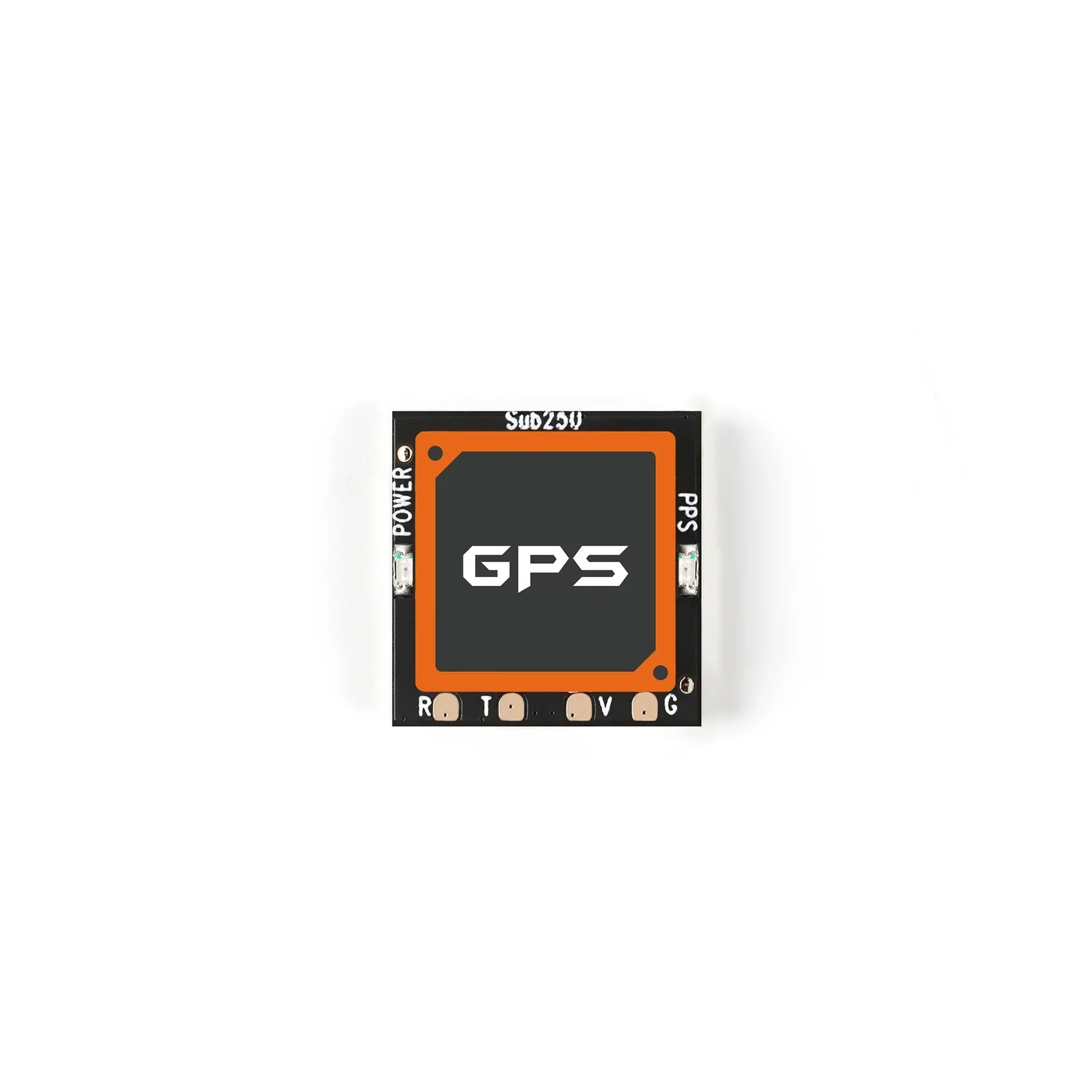

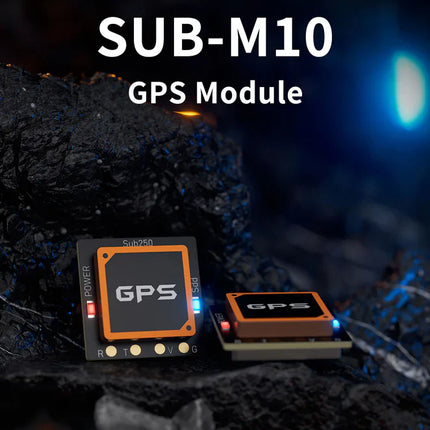

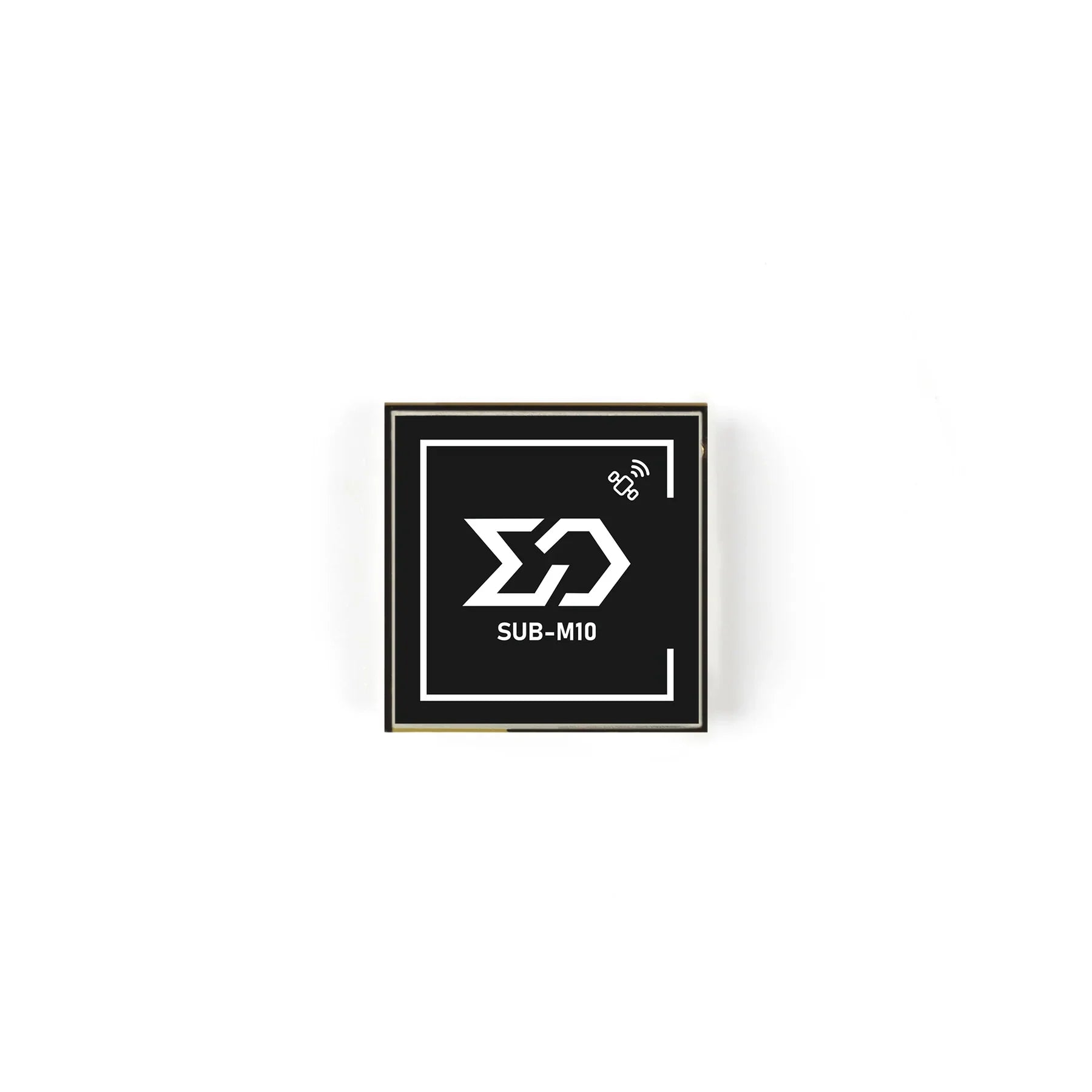

Sub250 SUB-M10 Micro GPS Module - u-blox M10 Multi-GNSS for FPV & RC

Enhance your FPV drone or RC aircraft with the compact and lightweight Sub250 SUB-M10 GPS Module. Featuring the advanced u-blox M10 series chip (M10050), this micro GPS delivers fast satellite acquisition and highly accurate positioning. Its incredibly small footprint (15x15x5.2mm) and featherlight weight (2.6g) make it the perfect GPS solution for weight-sensitive builds, including micro drones, sub-250g quads, and FPV wings.

Unlock superior navigation reliability with multi-constellation support. The SUB-M10 simultaneously receives signals from GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, and QZSS L1 systems, tracking up to 32 satellites for robust performance even in challenging environments. This ensures a stable connection and precise location data (2D ACC 1.5m horizontal accuracy in good weather).

Easy to integrate with a standard 3.3V-5V input voltage and outputting the common u-blox protocol at 115200bps, this module is compatible with many popular flight controllers. The onboard indicator light provides quick visual status confirmation. If you're searching for a small, light, fast, and reliable u-blox M10 GPS module for accurate positioning and return-to-home functions on your RC model, the Sub250 SUB-M10 is an excellent choice.

Key Features:

• Advanced u-blox M10 Chip: Utilizes the efficient M10050 chipset.
• Multi-Constellation Support: Tracks GPS, GLONASS, BDS, Galileo, SBAS, and QZSS satellites concurrently.
• Fast Satellite Lock: Quickly acquires position fixes.
• High Accuracy: Provides reliable positioning data (1.5m horizontal accuracy).

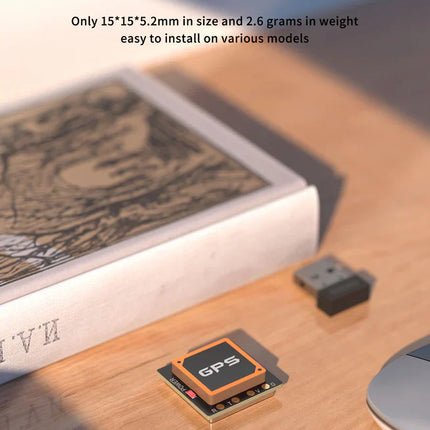

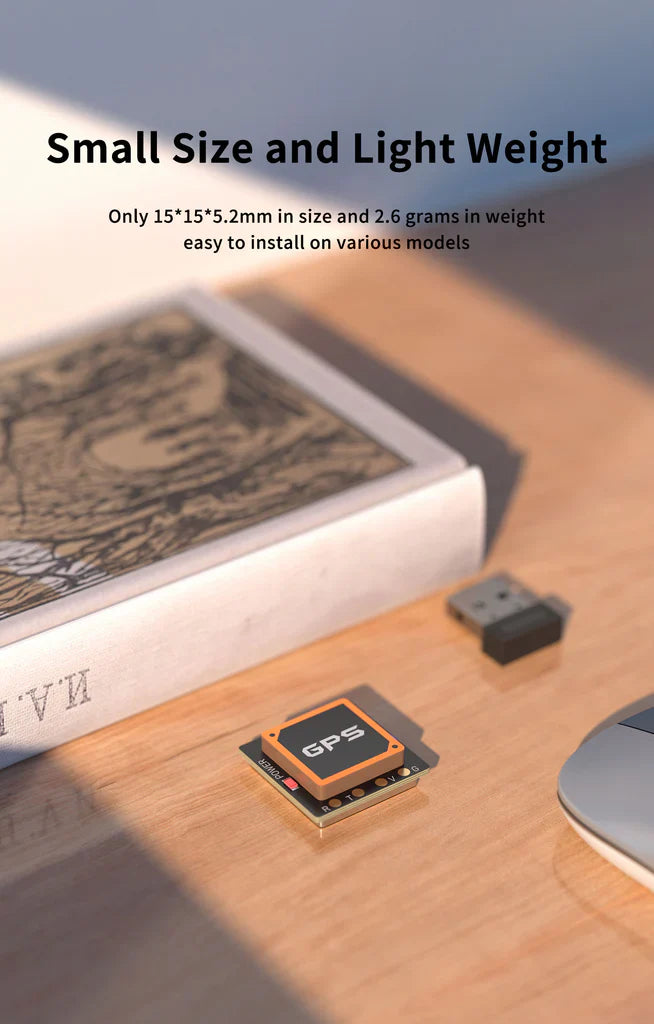

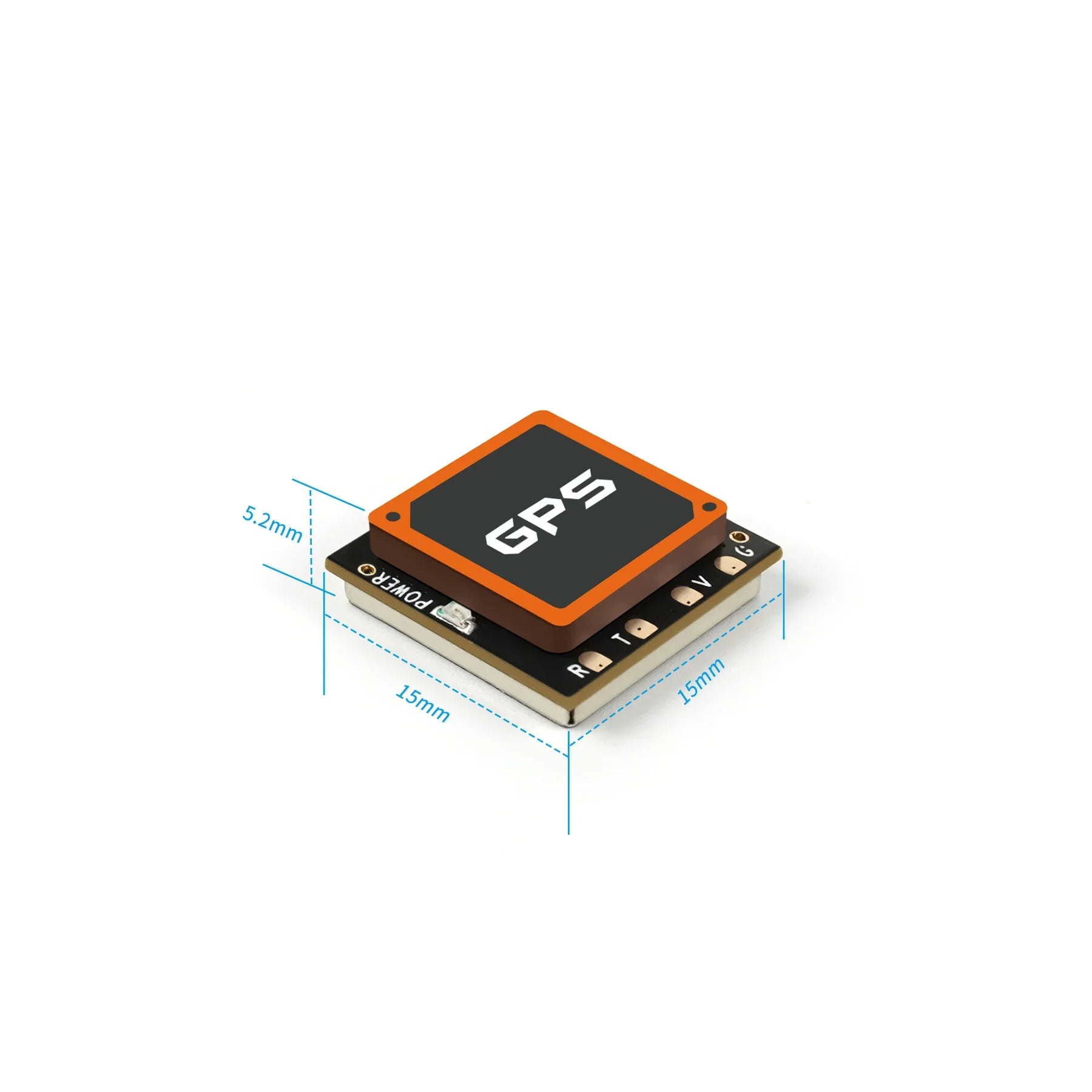

• Ultra-Compact & Lightweight: Measures only 15x15x5.2mm and weighs just 2.6g.
• Tracks up to 32 Satellites: Ensures strong signal reception and reliability.
• Ideal for Micro Builds: Perfect for sub-250g drones and small RC aircraft.

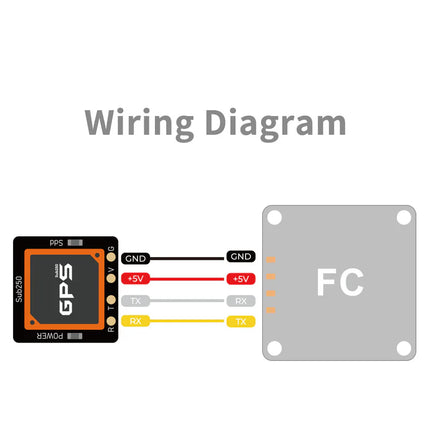

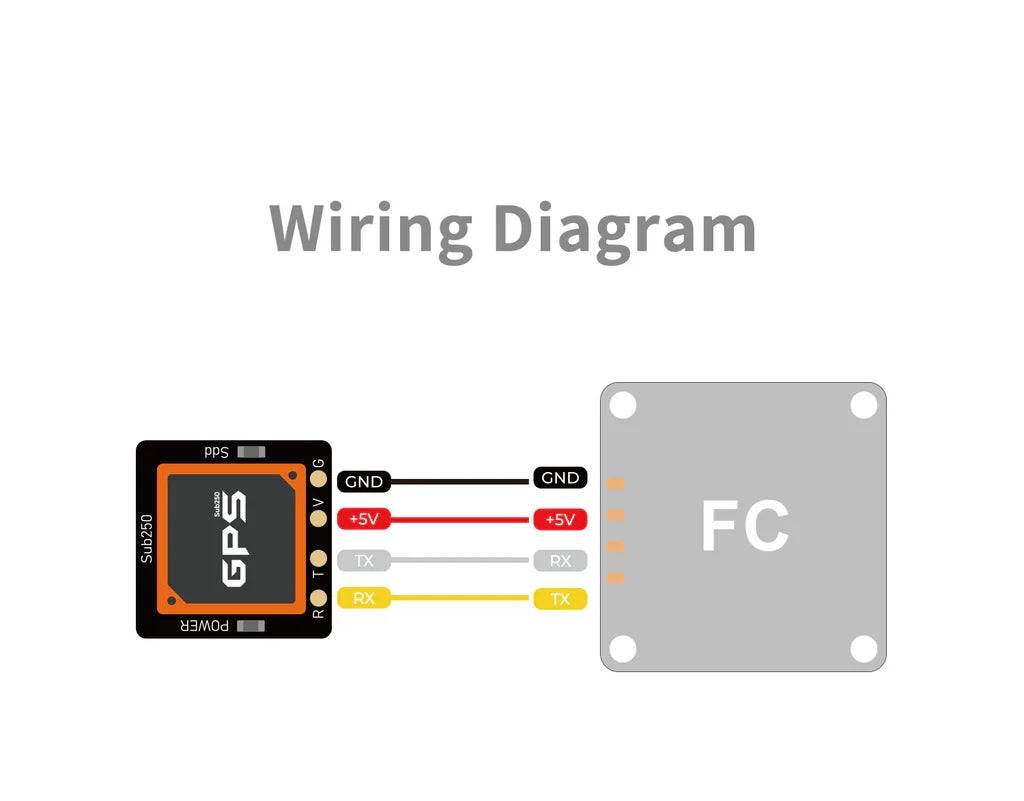

• Easy Integration: Standard u-blox protocol, 115200 baud rate, 3.3V-5V input.

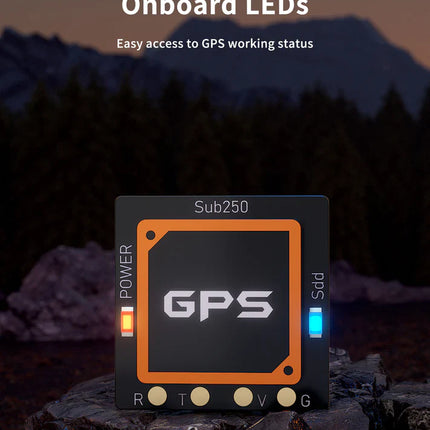

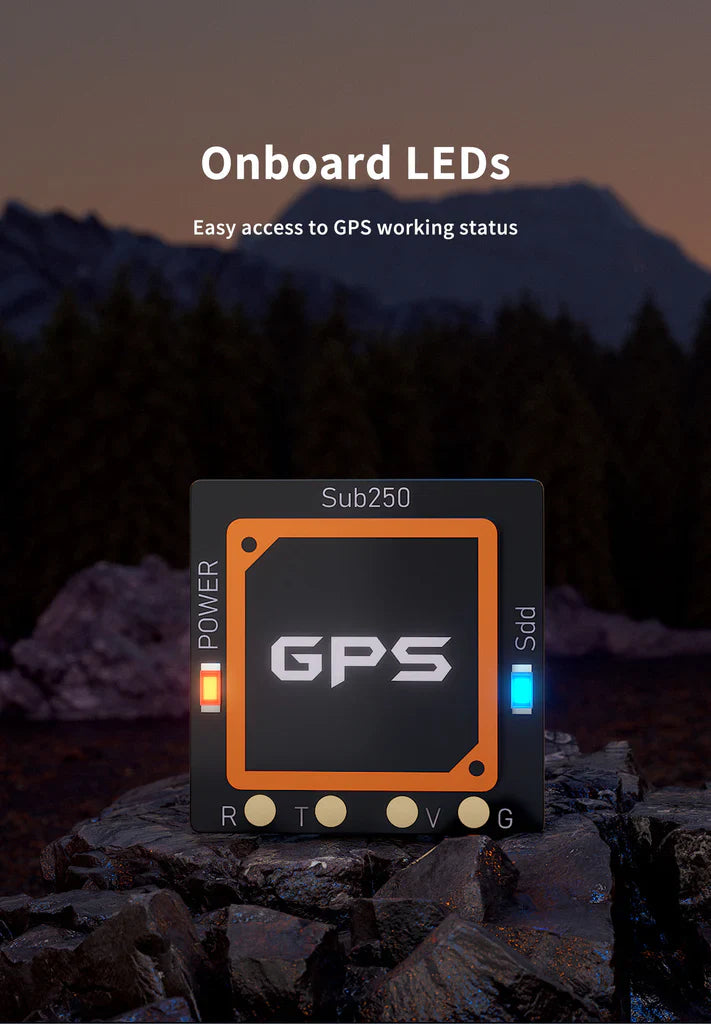

• Onboard Status LED: Provides visual confirmation of operation.

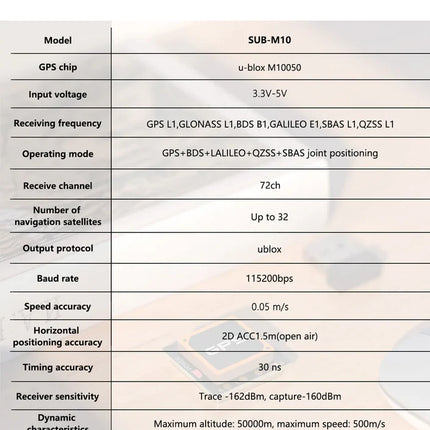

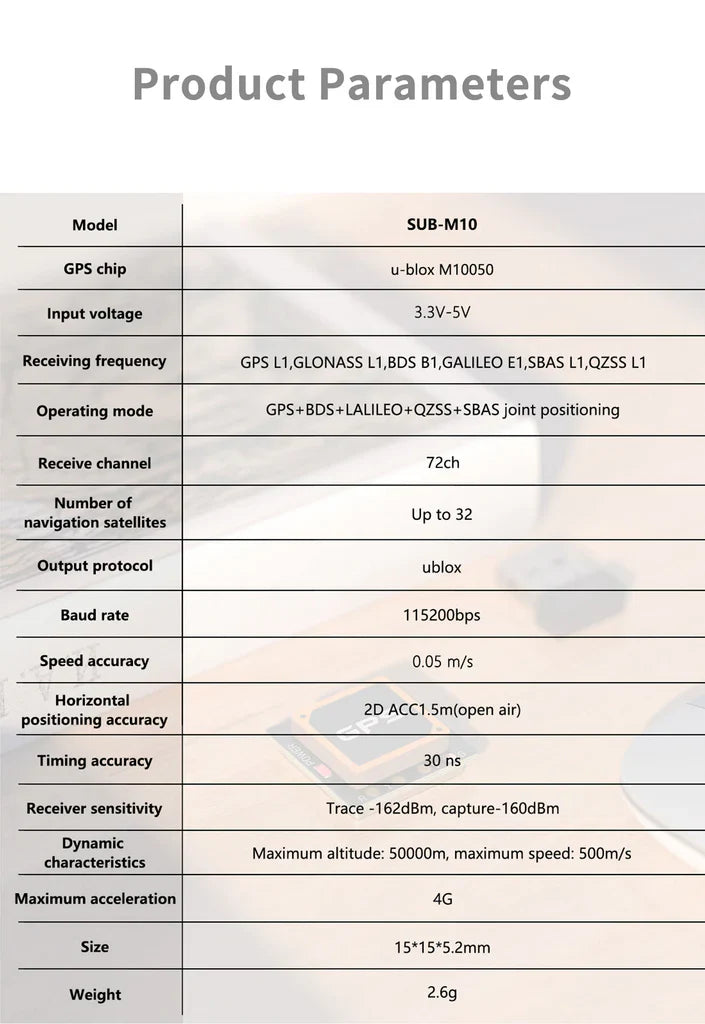

Specifications

• Product Model: SUB-M10
• GPS Chip: u-blox M10050
• Input Voltage: 3.3V - 5V
• Receiving Frequencies: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Operating Mode: GPS+BDS+GALILEO+QZSS+SBAS combined positioning
• Channels: 72ch
• Max Simultaneous Navigation Satellites: Up to 32
• Output Protocol: u-blox
• Baud Rate: 115200bps
• Speed Accuracy: 0.05 m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (Open Sky/Good Weather)
• Timing Accuracy: 30 ns
• Receiver Sensitivity: Trace -162dBm, Capture -160dBm
• Dynamic Characteristics:
  • Max Altitude: 50,000m
  • Max Speed: 500m/s
  • Maximum Acceleration: 4G

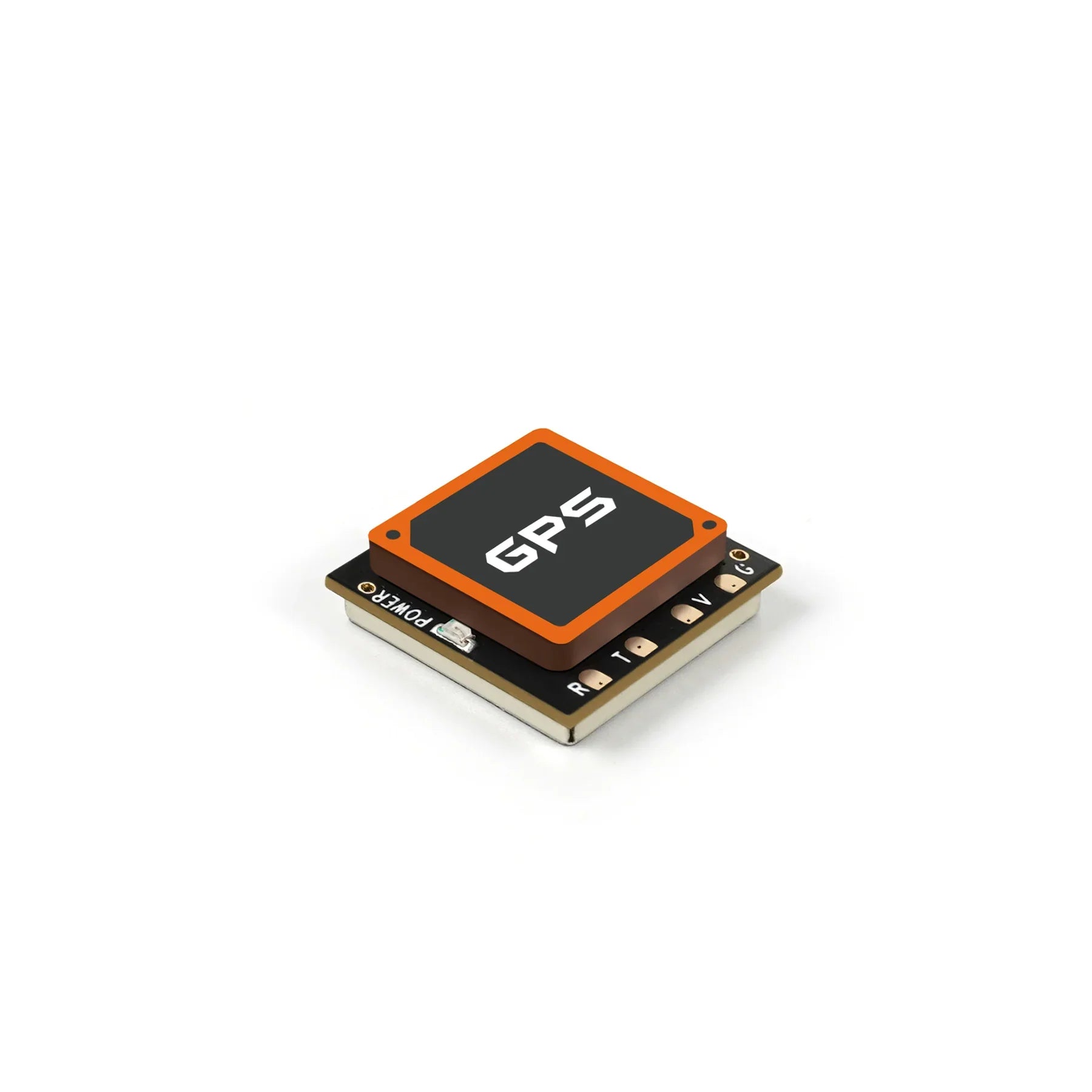

• Size: 15 x 15 x 5.2 mm

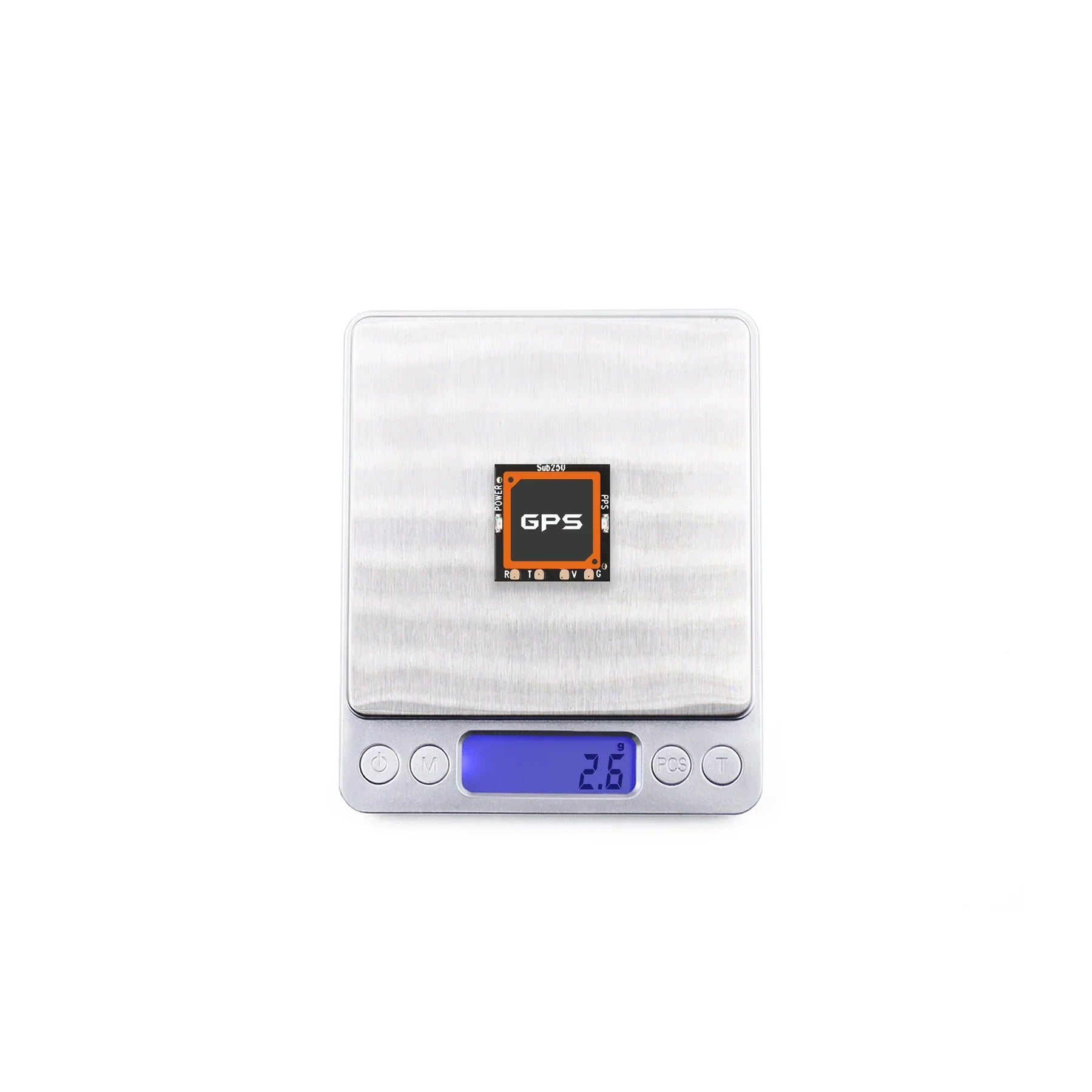

• Weight: 2.6g

What's in the Box

• 1 x Sub250 SUB-M10 GPS Module
• 1 x Terminal Wire/Cable
• 1 x Instruction Manual
• 1 x Sticker
• 1 x Heat Shrink Tubing

Disclaimer: Please note that included accessories, such as the color of the heat shrink tubing or wire insulation, may vary slightly depending on the manufacturer's supply batch and component availability. The core GPS module specifications remain consistent.
