Look, your TBS Mojito is a masterpiece of aerial engineering, designed for slicing through the air with grace and speed. But let's be real, even the smoothest operator needs a reliable partner. Enter the TBS Mojito Servo - the custom-designed co-pilot specifically engineered to handle the demands of your high-performance flying wing.

Tired of servos that whimper under pressure? This digital, metal-gear marvel isn't just built; it's forged in the fires of... well, a meticulous manufacturing process designed for durability. It's ready to translate your split-second stick inputs into crisp, precise maneuvers, ensuring your Mojito carves the sky exactly how you intend, not just how gravity suggests after a wobble.

Whether you're pulling high-G turns, executing flawless rolls, or just trying desperately to avoid that one specific tree, the Mojito Servo delivers the smooth, reliable, and fast response you need. Stop blaming the wind (or your thumbs) and give your Mojito the control authority it craves. Perfect for FPV wings, park flyers, and any RC application demanding a high-quality, fast, and robust digital metal gear servo .

Why You Need This Servo (Like, Yesterday):

• Custom Tuned for TBS Mojito: Designed to perfectly complement the flight characteristics of your wing.
• Metal Gear Durability: Built to withstand aggressive flying and the occasional "unscheduled landing".
• Digital Precision: Fast, accurate response for locked-in control. No more vague mushiness!
• High Torque & Speed: Enough power and speed (Check specs!) to keep up with demanding maneuvers.
• Reliable Performance: Because servo failure is the quickest way to turn your awesome wing into expensive confetti.

Specifications: Brace Yourselves, Numbers Incoming!

Operating Voltage:

4.8V - 6V DC

Standby Current:

≤20 mA

Consumption Current (No Load):

4.8V ≤70 mA / 6V ≤80 mA

Stall Current:

4.8V ≤1.1 A / 6V ≤1.3 A

Rated Torque:

4.8V ≥2.8kgf·cm / 6V ≥3.2kgf·cm

Max. Torque:

4.8V ≥4.5 kgf·cm / 6V ≥5.5 kgf·cm

No Load Speed:

4.8V ≤ 0.26sec/60° | 6V ≤ 0.24sec/60°

Rotating Direction:

CCW (500→2500us)

Pulse Width Range:

500~2500us

Neutral Position:

1500us

Operating Travel Angle:

90° ±10° (1000~2000 us)

Max. Operating Travel Angle:

180°±10° (500~2500us)

Mechanical Limit Angle:

360°

Gear Set Material:

Metal

Motor Type:

Core motor

Weight:

21± 0.5g

Case Material:

ABS

Connector Type:

JR/3Pin/2.54mm (Brown: GND, Red: Vcc, Orange: Signal/PWM)

Amplifier Type:

Digital

Horn Gear Spline:

25T/Φ5.9mm

What's In The Box?

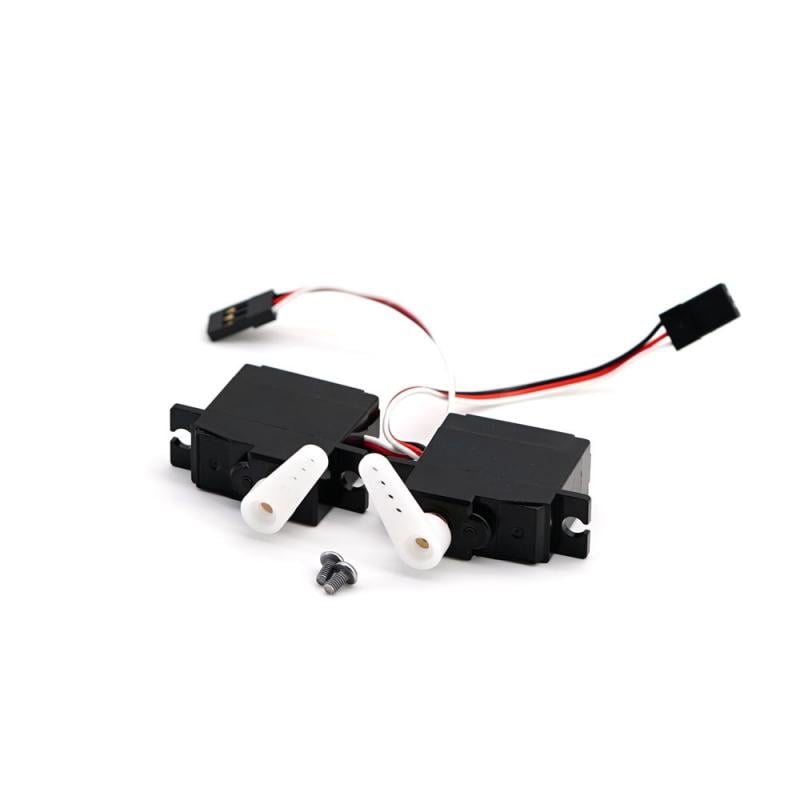

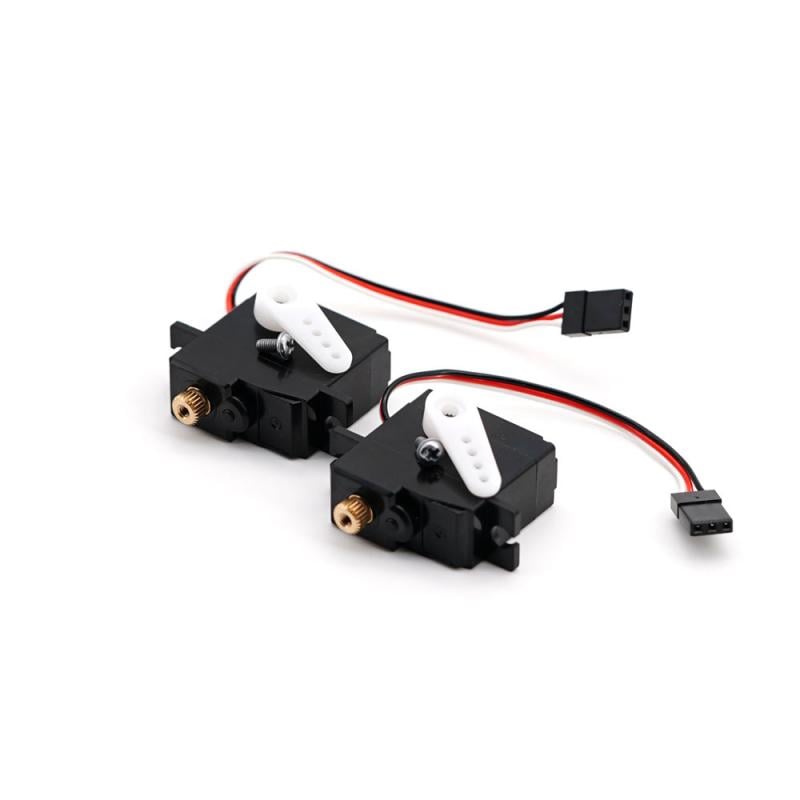

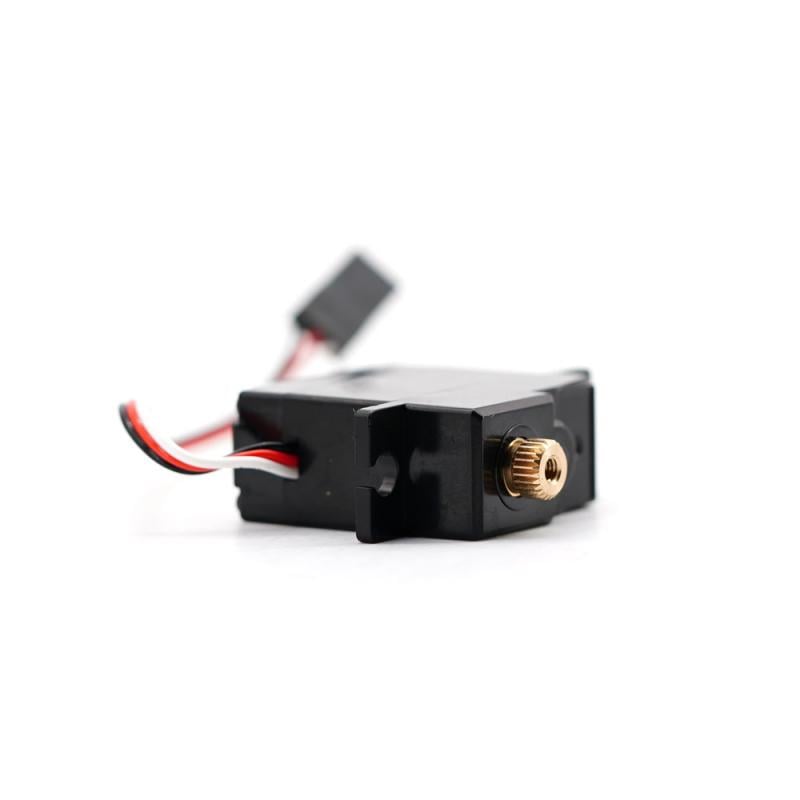

• 1 x TBS Mojito Servo
• Servo Horn Set (Various types)
• Mounting Screws

Disclaimer: We try our best, but sometimes the gnomes packing these boxes get creative. The included accessories (like servo horn types and screws) may vary slightly based on current supply. The core awesomeness of the servo remains constant, though!
