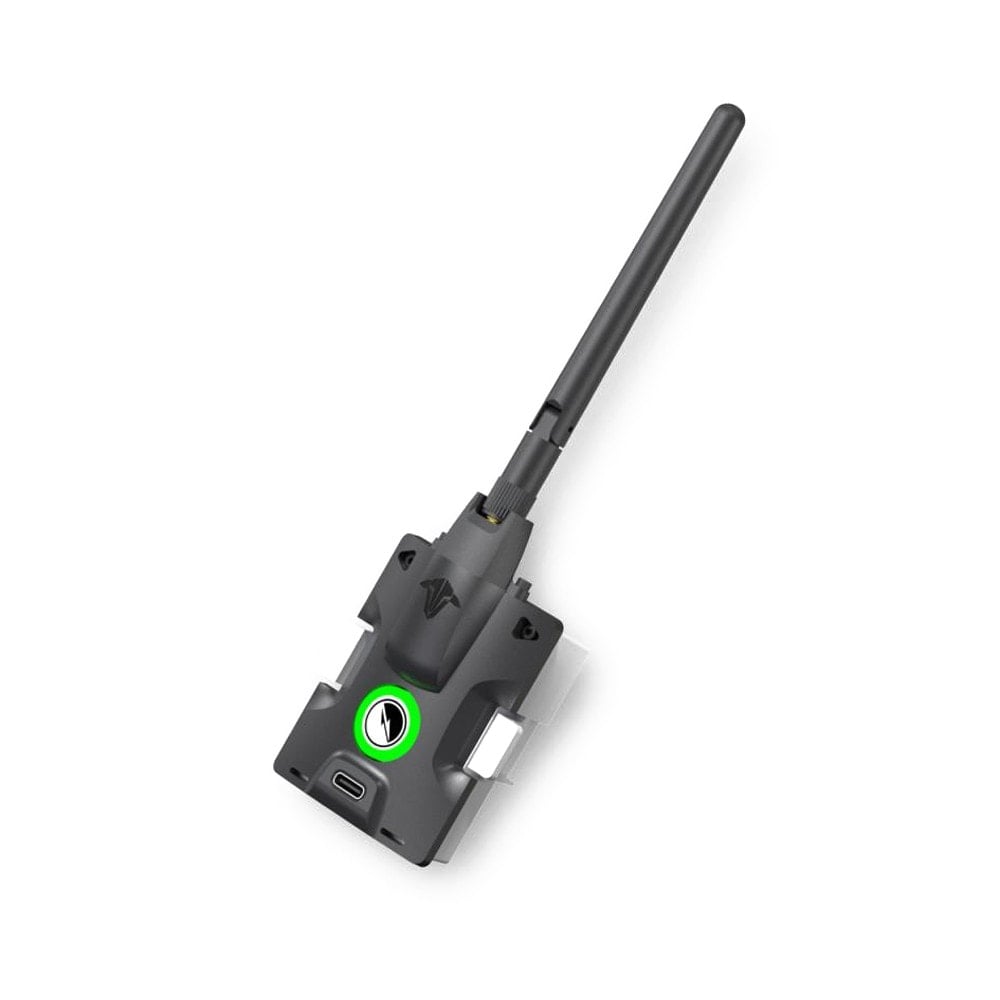

The Tracer Micro TX by TBS is the next generation of Crossfire technology!

Tracer technology utilises a 250Hz radio link sent through 2.4GHz technology which provides 3ms end to end latency - giving you the fastest radio link out there. Get range for days, faster connection, and best results with TBS Tracer.

Features

• 250Hz: Fastest available radio and telemetry link.
• Next-generation 2.4GHz technology meets robust Crossfire radio engine
• 3ms end to end latency
• "JR" and "LITE" form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars, and boats

Specifications

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 3.5 - 13V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) - 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: JR module bay (e.g. TBS Tango 1, RadioMaster TX16S, Taranis X9D). OpenTX V2.1+

*output power modes may not be available due to local regulation limitations

Includes

• 1 x TBS Tracer Micro TX
